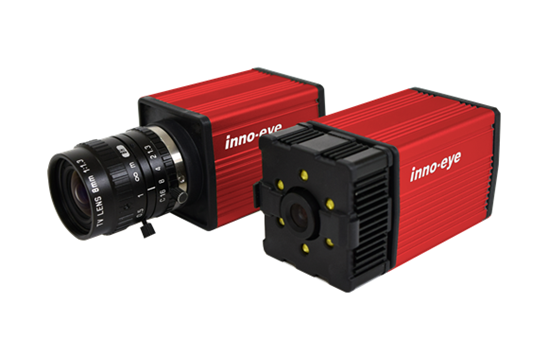

inno-eye smart S2000/S2100 Series

- Easy set up for simple vision inspection with new software, “inno-eye Vision Manager”
- Enhanced inspection speed with parallel processing circuit
- Smart camera which provides stand-alone vision inspection without PC
- Multiple vision inspection available with a price of 1 general vision system
- Maximum 25 inspection tools provided



  • Features

- Smart camera which provides stand-alone vision inspection without PC

Easy set up for simple vision inspection with new software, “inno-eye Vision Manager”

Enhanced inspection speed with parallel processing circuit



  • Specification

Series

S2002

S2006

S2102

S2106

Model

Built-in

(Global Shutter)

CS-mount

(Global Shutter)

Built-in

(Rolling Shutter)

CS-mount

(Rolling Shutter)

Processing & Memory

Processor

 Dual ARM926EJ-S™ RISC Processor(MV8729)

Data Memory

 128Mbit Stacked DDR SDRAM

Flash Memory

 1Gbit

Sensor

Image Sensor

 AR0134(1/3inch)

 OV2643 (1/4inch)

Shutter

 Global

 Rolling

Resolution

 640 X 480 / 1280 X 720
(1280 X 960)

 640 X 480 / 1000 X 1000
1280 X 720 / 1600 X 600
(1600 X 1200)

Frame Rate

 720P (1280 X 720) : 60 fps

 720P (1280 X 720) : 30 fps

Pixel Size

 3.75μm X 3.75μm

 2.2μm X 2.2μm

Output Format

 YUV422 (8Bit)

 YUV422 (8Bit)

I/O Interface

Digital Output

 3x Sink type output, Max sink 100mA, 60VDC (VAC Peak)

Digital Input

 3x Opto-isolated input

Ethernet

 100 Base-T

Serial Communication

 RS-232C (EIA-232-C)

Video-out

 CVBS

Light Control

 PWM control,
5 steps

 N/A

 PWM control,
5 steps

 N/A

Mechanical & Electrical Specs

Lens Type

 8mm(F2.0)

 C, CS-Mount
Manual Lens

 8mm(F2.0)

 C, CS-Mount
Manual Lens

Lens Mount

 S-Mount (M12)

 CS-Mount

 S-Mount (M12)

 CS-Mount

Illuminator

 Built-in Type (Ring type)

 Purchase separately

 Built-in Type (Ring type)

 Purchase separately

Dimensions
( mm X mm X mm)

 39.4 X 41.0 X 84.1

 39.2 X 39.2 X 78.9

 39.4 X 41.0 X 78.1

 39.2 X 39.2
X 72.9

Weight

 152g

 120g

 146g

 114g

Housing

 Aluminum, Plastic

Power Consumption

 +24VDC(22 ~ 26VDC)
max 300mA

Environment

Operating Ambient
Temperature

 0°~ 45°C

Storage Ambient
Temperature

 -30°~ 80°C

Software Environment

Operating System

 Windows 7, 8, 10

CPU

 Core i5

RAM

 4GB

Monitor Resolution

 1280 X 1024

Certificate

 CE

Lens and lighting are sold separately for S1106, S1006, S2106, S2006.

The specification can be changed without notice for performance improvement.



  • Dimension

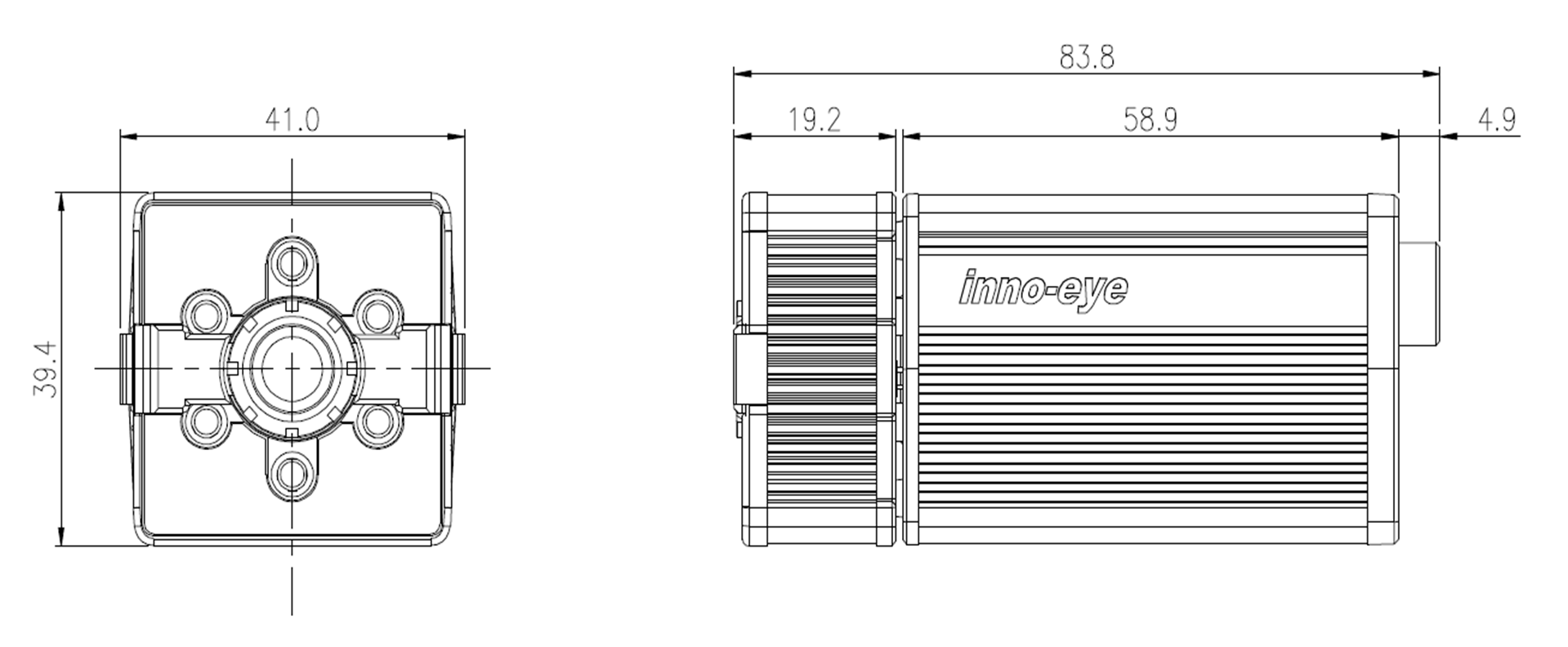

S2002

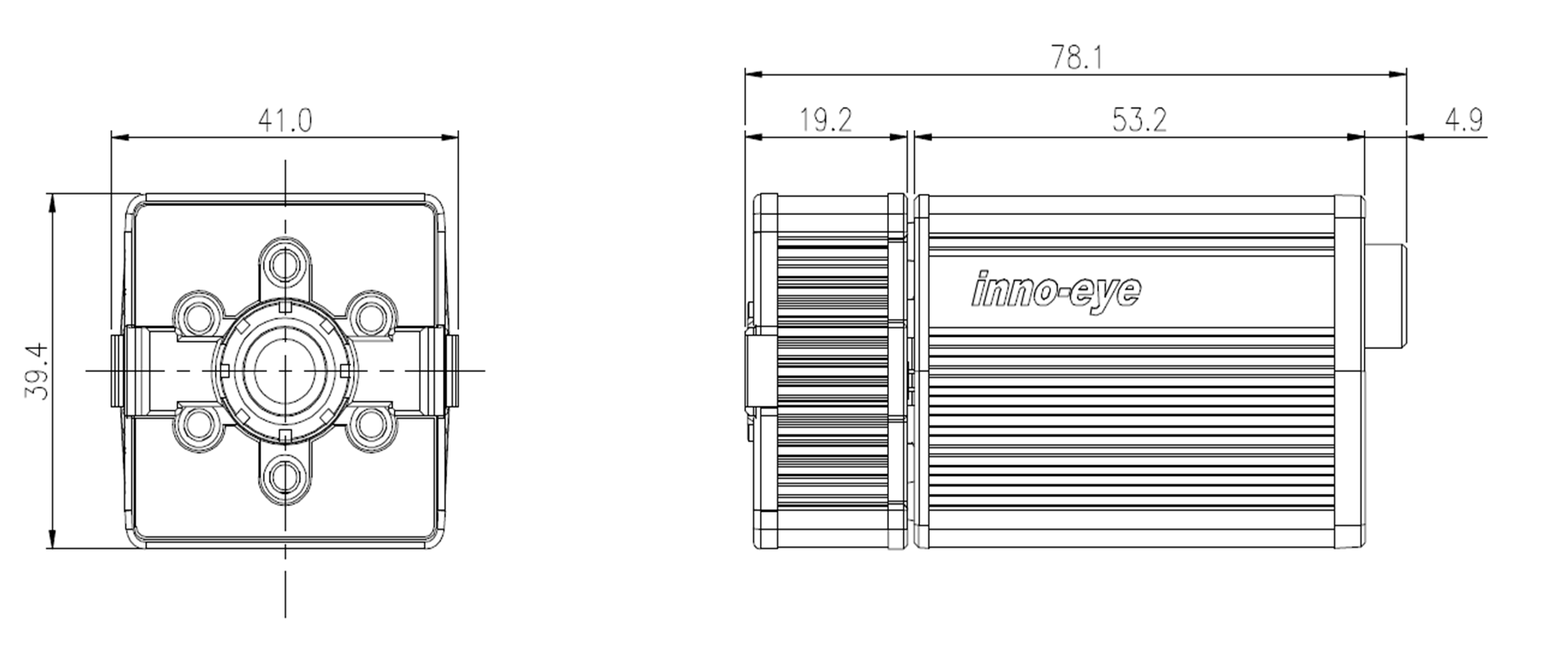

S2102

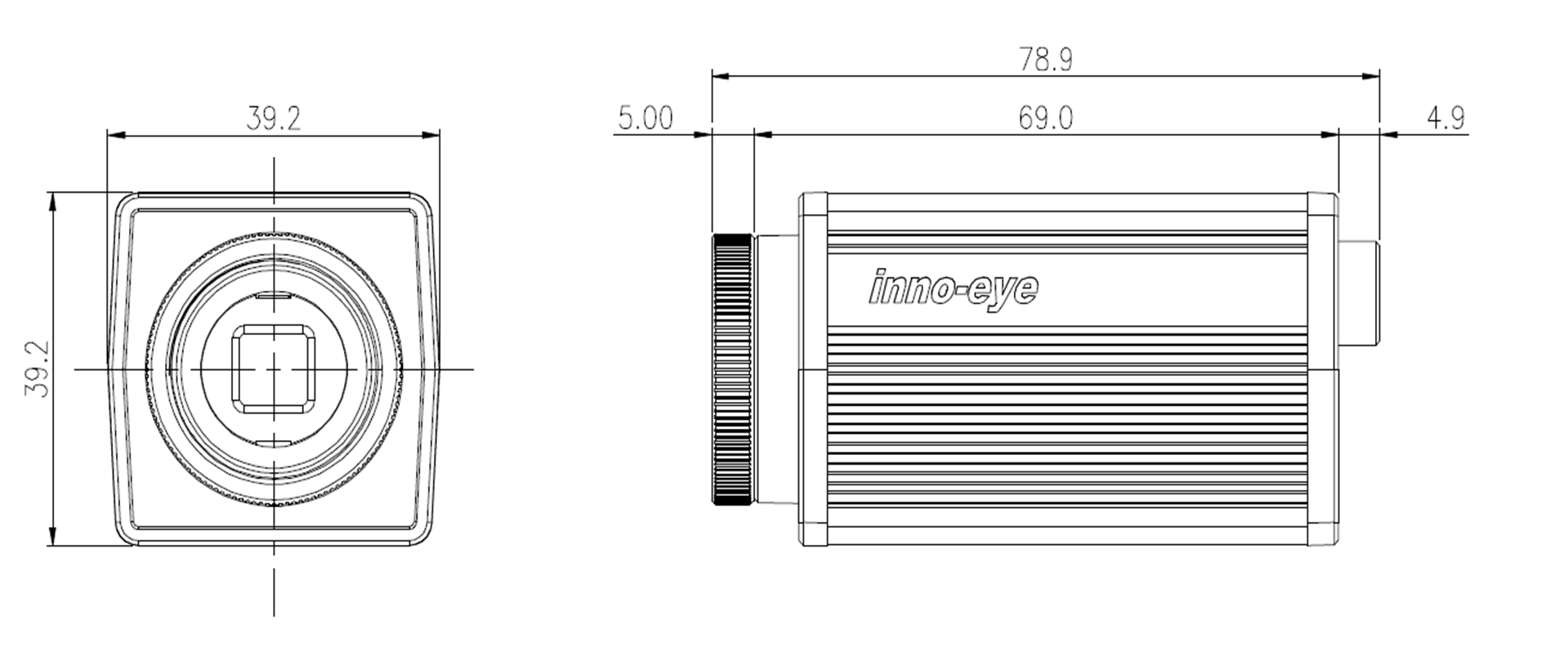

S2006

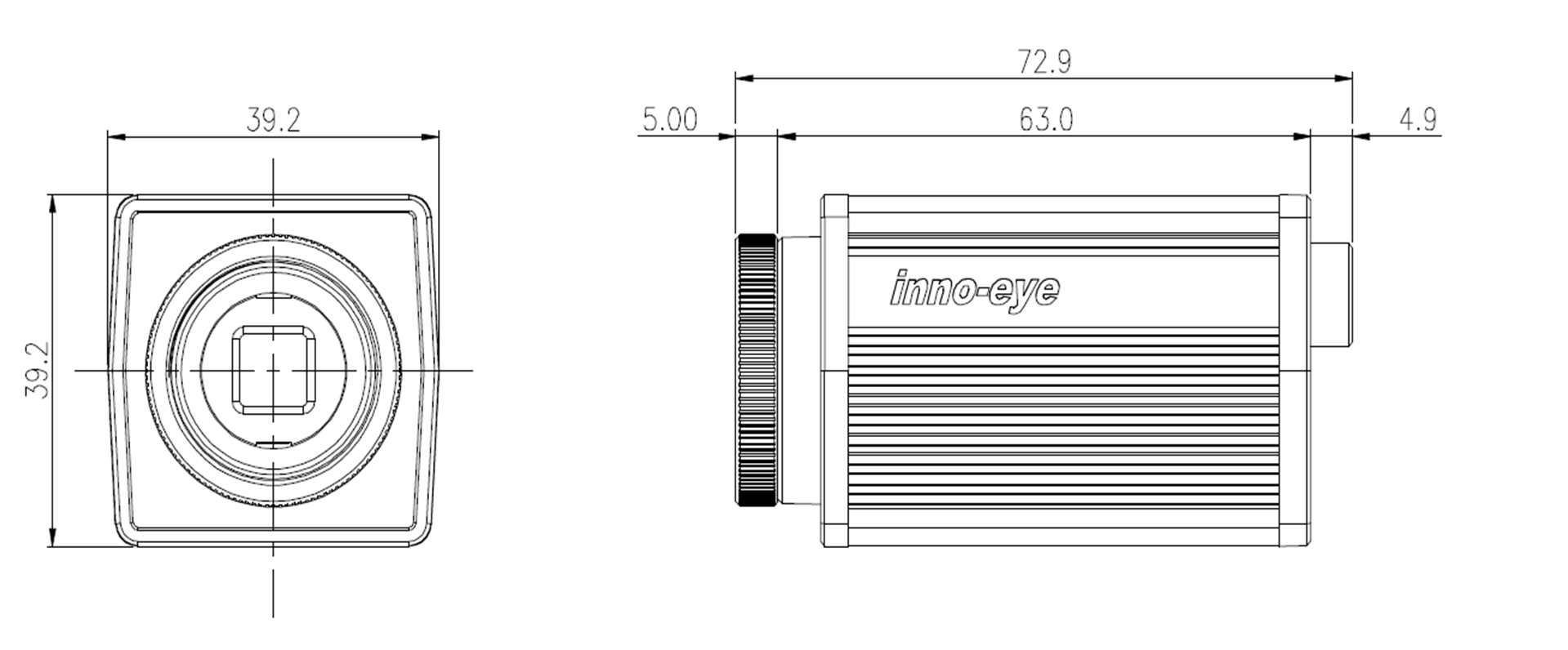

S2106
