New name of Machine Vision, inno-eye

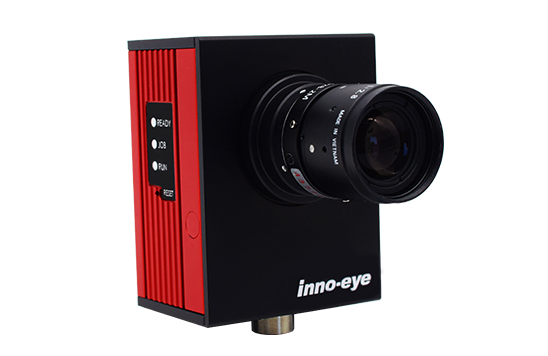

inno-eye smart T4007 Series

- 10x* faster inspection speed with high performance processing circuit
- Smart camera which provides stand-alone vision inspection without PC
- Multiple vision inspection available with a price of 1 general vision system
- Maximum 25 inspection tools provided

* Compared to the previous model



  • Features

- Smart camera which provides stand-alone vision inspection without PC

Easy set up for simple vision inspection with new software, “inno-eye Vision Manager”

Enhanced inspection speed with parallel processing circuit



  • Specification

Series

T4007

Model

CS-mount

(Global Shutter)

Sensor

Image Sensor

AR0134(1/3inch)

Shutter

Global

Resolution

1280x720@15fps (HD)

640x480@30fps (VGA)

Pixel Size

3.75μm X 3.75μm

Output Format

RGB Bayer Raw (12Bit)

I/O Interface

Digital Output

3x Sink type output, Max sink 100mA, 60VDC (VAC Peak)

Digital Input

3x Opto-isolated input

Ethernet

10/100/1000 Base-T

Serial Communication

RS-232C (EIA-232-C)

Video-out

HDMI1.4

Light Control

N/A

Mechanical & Electrical Specs

Lens Type

C, CS-Mount / Manual Lens

Illuminator

Purchase separately

Dimensions
( mm X mm X mm)

76 X 57 X 42

Weight

250g

Housing

Aluminum

Power Consumption

Max 0.3A

Environment

Operating Ambient
Temperature

0°~ 45°C

Storage Ambient
Temperature

-30°~ 80°C

Software Environment

Operating System

Windows 7, 8, 10

CPU

Core i5

RAM

4GB

Monitor Resolution

1280 X 1024

Lens and lighting are sold separately.

The specification can be changed without notice for performance improvement.

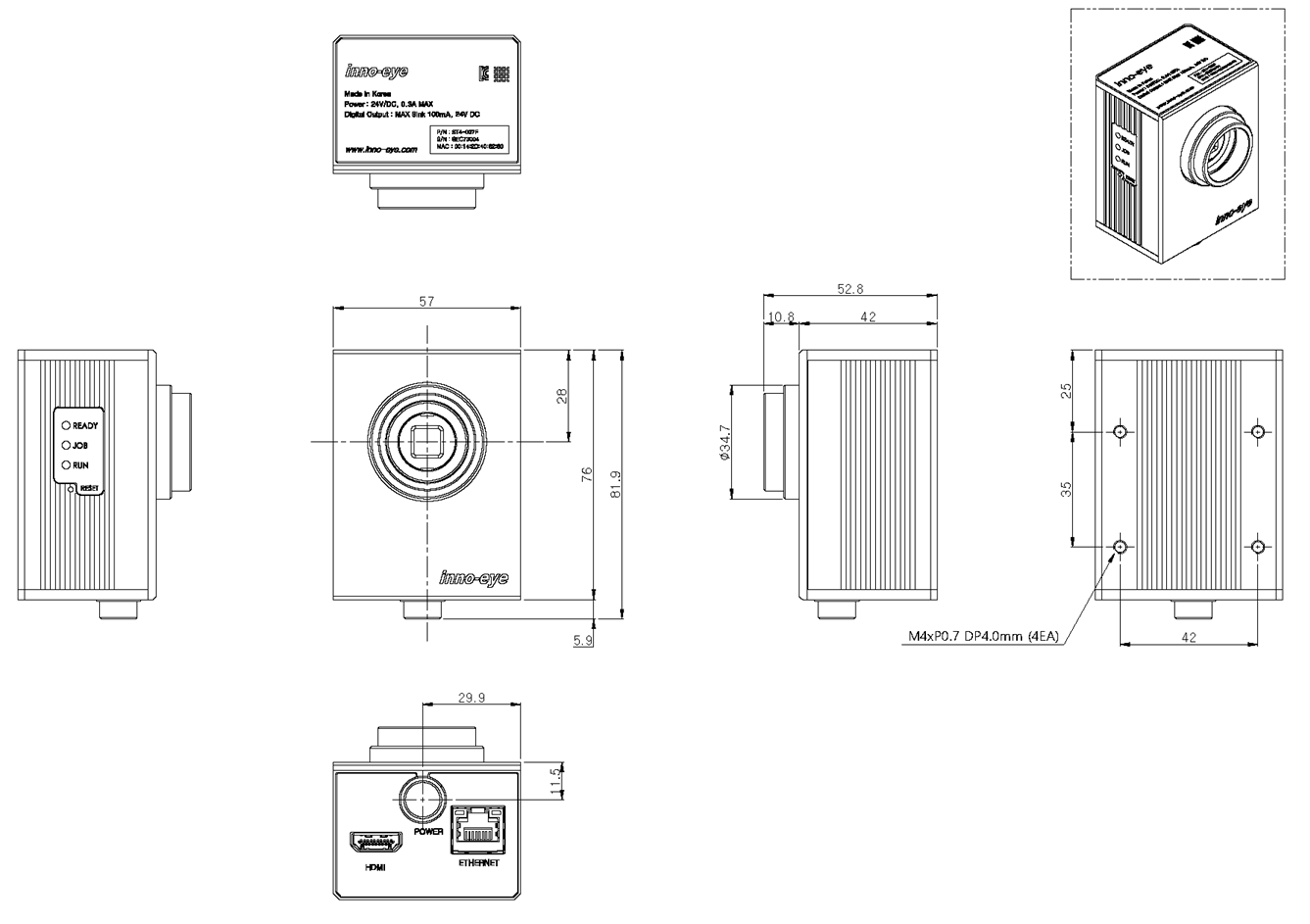

  • Dimension






  • Applications
